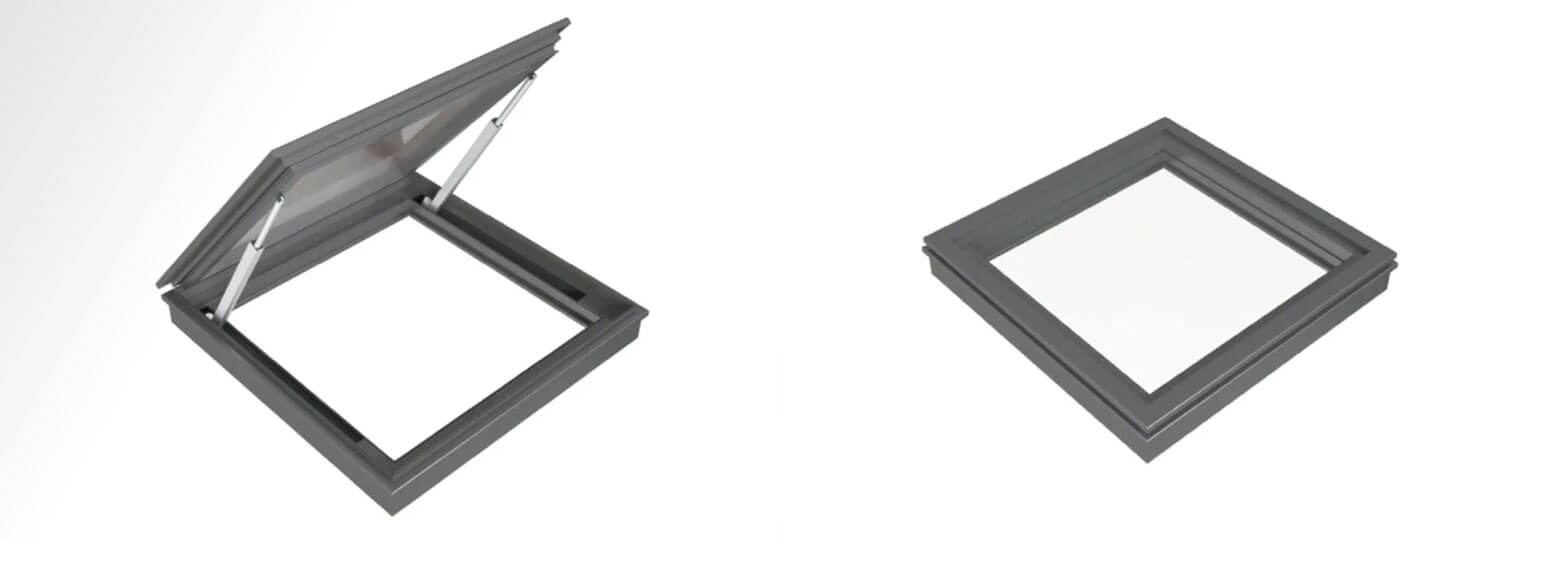

150A Series Hidden Push Rod Top-hung Skylight
(1) It is equipped with independently R&D and designed skylight-specific aluminum profiles with a wall thickness of 2.0mm;(2) The area of a single sash can reach a maximum of 2m² and can be combined a
Technical Parameters
(1) Installation method: Recessed type
(2) Profile specification: 60×150×2.0mm
(3) Processing technology: Aluminum alloy seamless welding
(4) Glass configuration: 6G+6G (standard configuration) or 6G+8G
(5) Control method: Electric remote control, manual opening
(6) Opening range: Manual opening angle can reach 70° (electric stroke 400mm)
(7) Skylight standard accessories: Rain-sensing motor, remote control
(8) Intelligent optional accessories: Mobile phone remote control, rain sensor, atomized glass, electric sunshade
Equipment Details
(1) It is equipped with independently R&D and designed skylight-specific aluminum profiles with a wall thickness of 2.0mm;
(2) The area of a single sash can reach a maximum of 2m² and can be combined arbitrarily;
(4) Equipped with a rain-sensing motor, with noise as low as 30 decibels;
(5) The service life of the motor can reach over 30,000 operations;
(6) Directly input 220V voltage and can be directly controlled by remote control;
(7) The open ventilation area can reach up to 70%, which can meet various ventilation and smoke exhaust requirements; it has an instant braking function, which can immediately overcome the inertia of the power system.
