(1) It is equipped with independently R&D and designed skylight-specific aluminum profiles with a wall thickness of 2.0mm;(2) The area of a single sash can reach up to 2m² and can be combined arbitrar
Technical Parameters

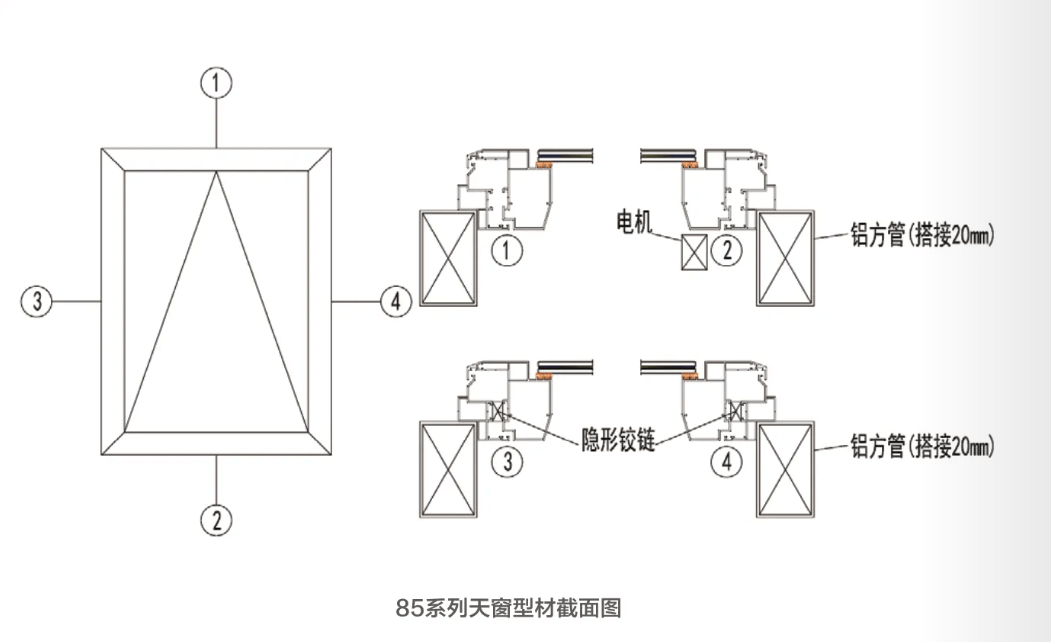

(1) Installation method: Recessed type; Profile specification: 98×85×2.0mm
(2) Processing technology: Aluminum alloy seamless welding/corner assembling (using German Weiser corner assembling adhesive)
(3) Glass configuration: 6G+6G (standard configuration) or 8G+8G
(4) Control method: Electric remote control, manual opening
(5) Opening range: Manual opening angle can reach 70° (electric stroke 400mm)
(6) Skylight standard accessories: Rain-sensing motor, remote control
(7) Intelligent optional accessories: Mobile phone remote control, rain sensor, screen window
Equipment Details
(1) It is equipped with independently R&D and designed skylight-specific aluminum profiles with a wall thickness of 2.0mm;
(2) The area of a single sash can reach up to 2m² and can be combined arbitrarily;
(3) Equipped with a rain-sensing motor, with noise as low as 30 decibels;
(4) The service life of the motor can reach over 30,000 operations;
(5) Directly input 220V voltage and can be directly controlled by remote control;
(6) The open ventilation area can reach up to 70%, which can meet various ventilation and smoke exhaust requirements;
(7) It has an instant braking function, which can immediately overcome the inertia of the power system.
