Technical Parameters
Cavity structure: Multi-cavity with three-layer sealing
Width: 76mm
Window frame thickness: 90.6mm
Profile wall thickness: 1.8mm
Glass thickness: 5+12A+5+12A+5
Profile colors: Cedar White, Teak, Weathered Grey, Light Walnut, Dark Walnut, Yellow Rosewood, Cherry
Flame retardancy: Class B1
Energy efficiency coefficient: U-value ≤ 1.36-1.8 (W/㎡·K)
Sound insulation performance: Class 6 (35-45 dB)
Air tightness: Class 8 [q1 ≤ 0.5 (m³/m·k)]
Water tightness: Class 6 (Pa)
Wind pressure resistance: ≥ Class 9 (kPa)
Customizable: Yes
Window frame height: 61.1mm
Equipment Details

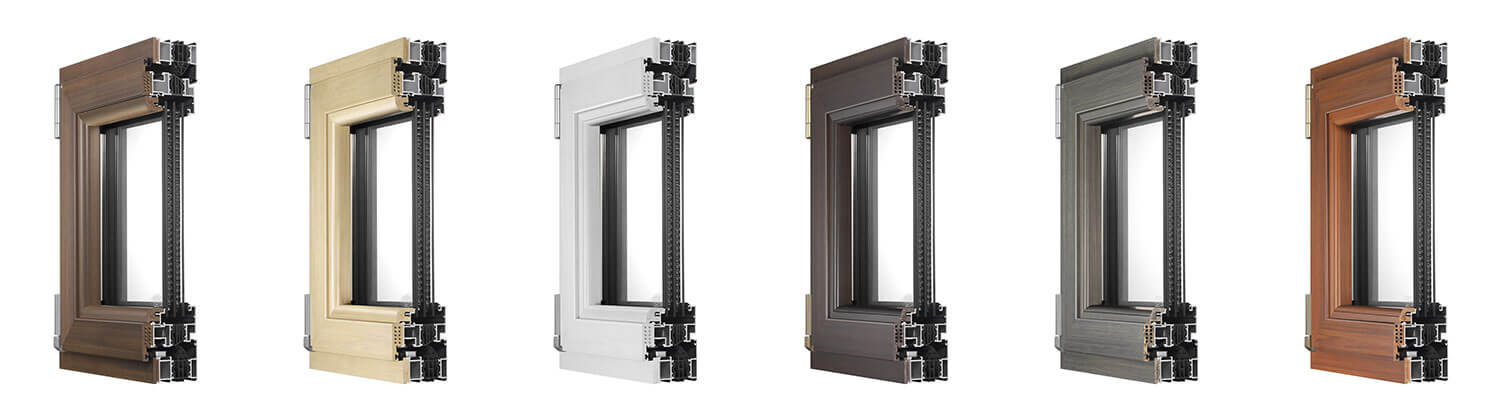

Characteristics of Low-Carbon Profiles
Low-carbon aluminum-wood door and window profiles are composed of Dezhong low-carbon wood-clad aluminum alloy profiles. Dezhong low-carbon aluminum-wood system doors and windows are developed and designed with reference to the system door and window standards of European countries such as Germany and Italy.
Composition of Low-Carbon Materials
Low-carbon materials refer to new materials that can reduce the usage of non-renewable natural raw materials under the premise of ensuring performance, feature low energy consumption, low pollution, and low emissions in the manufacturing process, have a long service life, produce no harmful substances during use, and are recyclable and reproducible. Low-carbon materials achieve energy conservation and emission reduction throughout the production and use process, making them sustainable and future-oriented materials.
Production Process Standards
The low-carbon wood meets the standard for infant food packaging, free of formaldehyde and heavy metal toxins. It adopts unique patented three-cavity PA66 thermal insulation strips and automotive-grade EPDM foam rubber strips, with an eight-cavity structure for super sound insulation. The fire resistance rating of the low-carbon wood reaches national Class B1.
